SN74ABT162827ADL
Manufacturer:
Texas Instruments
Mfr.Part #:
SN74ABT162827ADL
Datasheet:
Description:

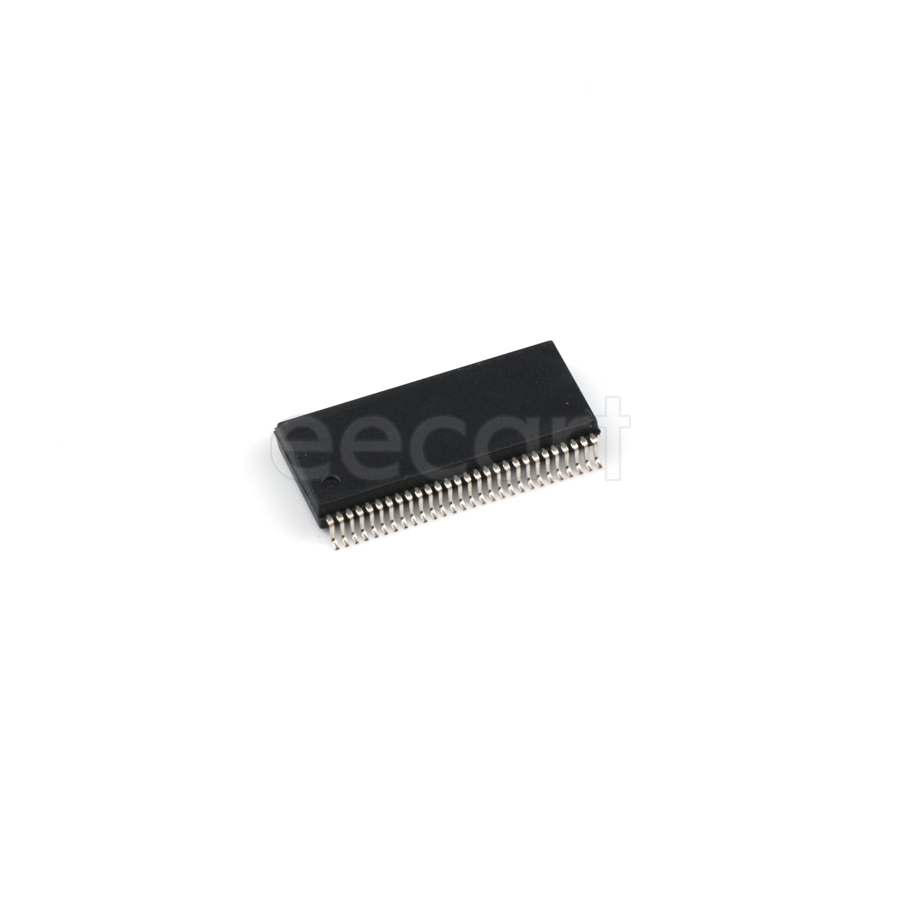

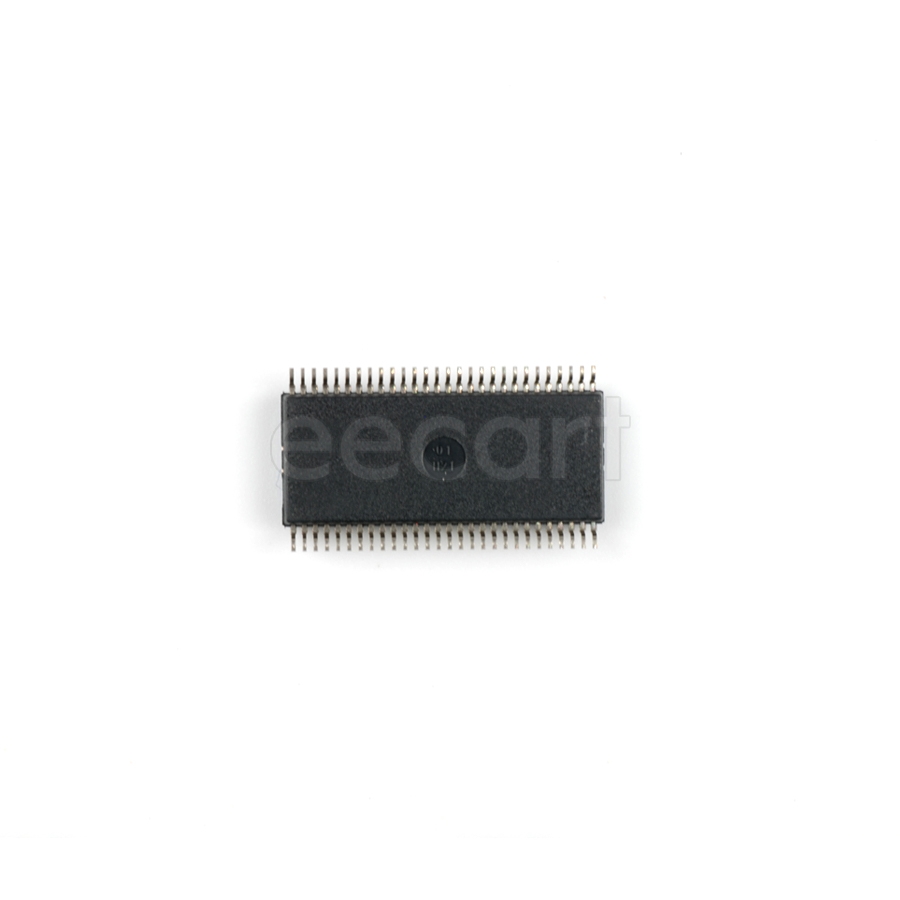

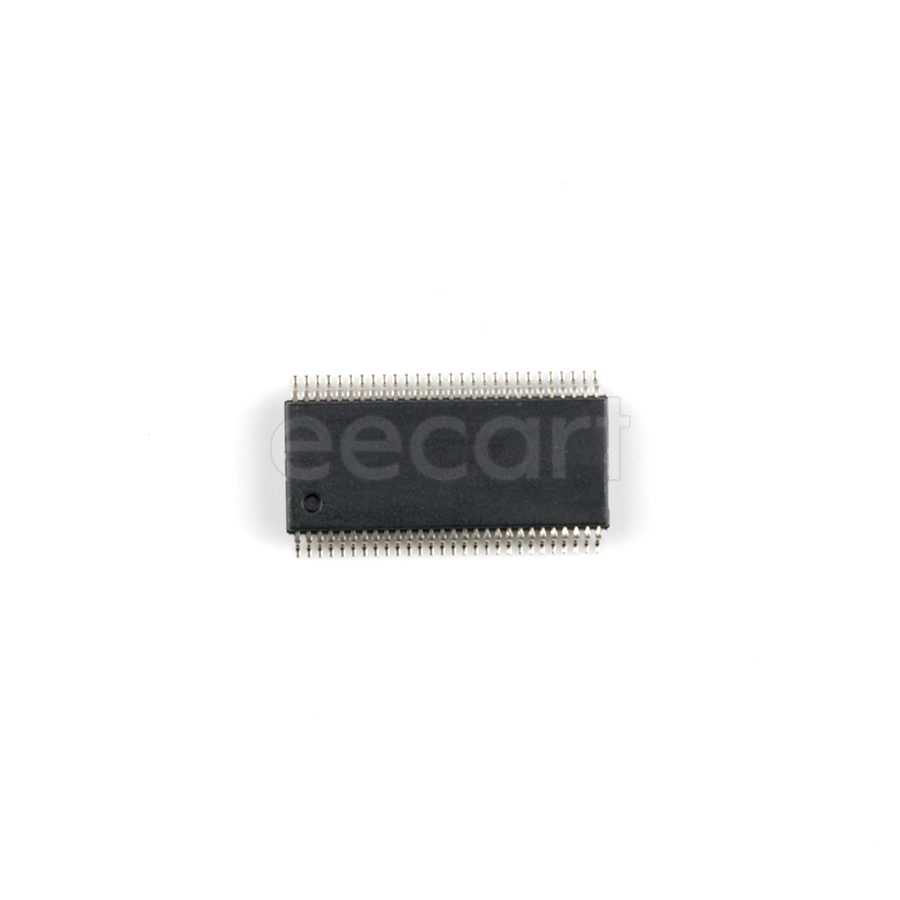

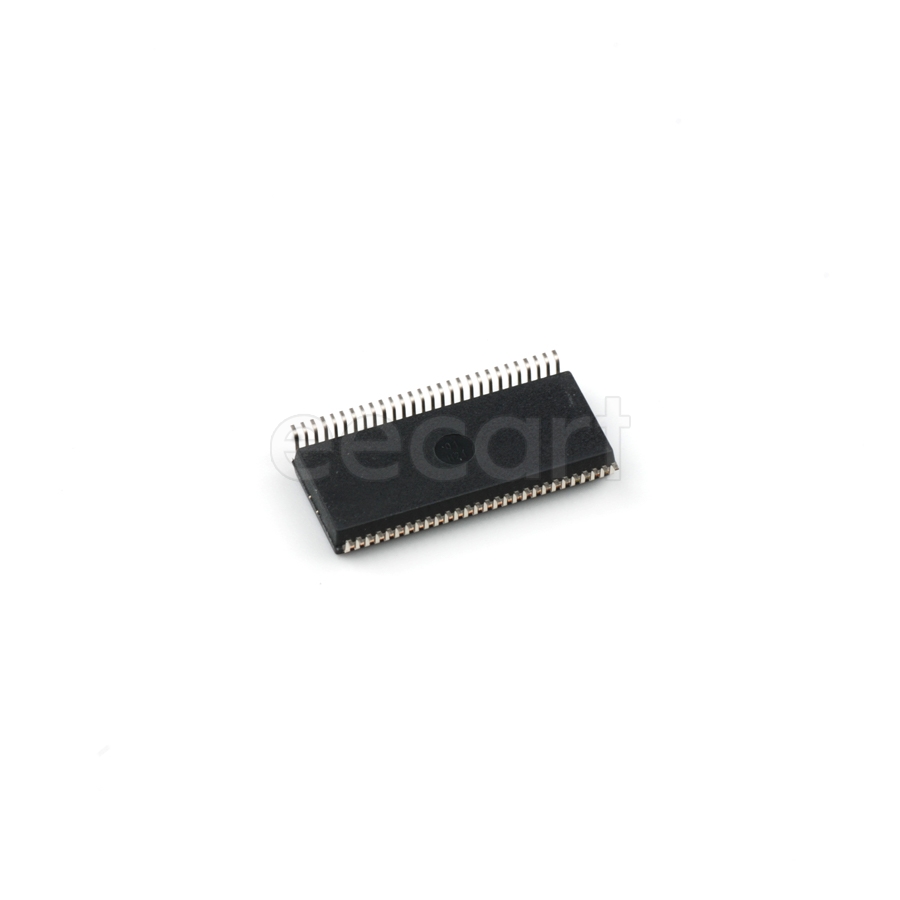

Buffers, Drivers, Resceivers and Transceivers SSOP-56 SMD/SMT 3-State
| Parameter | Value |
|---|---|
| Length | 18.41 mm |
| Width | 7.49 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 56 |
| Height | 2.79 mm |
| Thickness | 2.59 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Non-Inverting |
| REACH SVHC | No SVHC |
| Number of Elements | 2 |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Production (Last Updated: 3 days ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 4.5 V |
| Number of Channels | 20 |
| Number of Bits | 20 |
| Turn-On Delay Time | 6.9 ns |
| Quiescent Current | 32 mA |
| Propagation Delay | 4.2 ns |
| High Level Output Current | -12 mA |
| Low Level Output Current | 12 mA |
| Logic Function | AND, Buffer, Inverting |
| Number of Inputs | 20 |
| Number of Bits per Element | 10 |
| Number of Outputs | 20 |
| Number of Input Lines | 20 |
| Number of Output Lines | 20 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 3 days ago) |
| Operating Supply Current | 32 mA |
| Packaging | Tube |
| Output Type | 3-State |
Stock: 97
Distributors
pcbx
pcbxUnit Price$3.76767
Ext.Price$3.76767
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.76767 | $3.76767 |
| 10 | $2.88539 | $28.85390 |
| 25 | $2.72183 | $68.04575 |
| 50 | $2.56755 | $128.37750 |
| 100 | $2.42201 | $242.20100 |
| 300 | $2.32964 | $698.89200 |
| 500 | $2.24077 | $1120.38500 |
| 1000 | $2.18434 | $2184.34000 |
